Products > LED Tube Lights > Intelligent T8 Tubes > 600mm

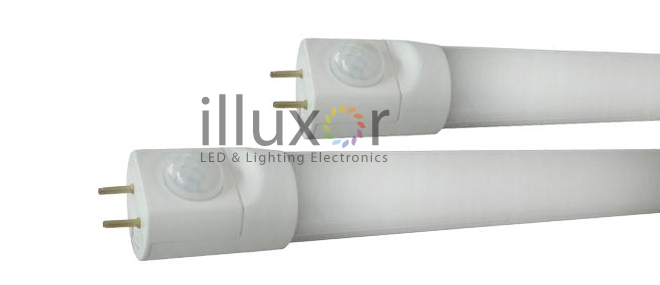

illuxor LED PIR Tube Light

CE & RoHS

Product Details: illuxor T8 LED Tubes PIR Sensor 600mm
LED Chip Brand Epistar Input Voltage 85V - 265VAC
LED Chip Type SMD3528 Power Frequency 50/60Hz
LED Chip Quantity 144pcs Output Voltage 36VDC
Color Temperature 2800-7000K LED Driver Constant Current LED Driver
Fixture Efficiency ≥87% Total Power 10W
Light Efficiency ≥85lm/W LED Power Dissipation 8.5W
Luminous Flux 965lm Power Efficiency 85%
Ra ≥75 Power Factor ≥0.9
Beam Angle 120º Detection Zone 120º, 3-5m

Heat Sink Surface Temperature 38º Lifespan ≥50000 hours
Luminaire Base Temperature 40º Fixture Material Aluminum Alloy + PC
Working Temperature –25ºC ~ + 45ºC Net Weight 200g
Working Humidity 15% ~ 90% RH Connector Type G13
Storing Temperature -30ºC ~ +65ºC Size D =ø29mm x L=598mm
Fluorescent Replacement 20W IP Level IP54

Packing: Per Carton Quantity 20 pcs
    GW 9.5kg
    Size (mm) 650*220*180

illuxor PIR Sensor Led Tube Lights (Passive Infrared Sensor, PIR-based motion detector)

Features:

The brightness of the illuxor intelligent LED tube can be adjusted without switch or control system. It can be automatically dimmed on standby mode (30%) and can light up 100% when a moving object is detected by the built-in motion sensors, and turns off when object left over 16 sec.



Detection Zone: <1200Angle Of Cone,Winthin 3-5 Meter
Statical Power Consumption: <50uA
Delay Time: 16Second
Touch Of The Way: FIR Switch; Continuous Trigger



The intelligent LED tube is has many uses in industrial lighting, office lighting, public spaces such as galleries, courtyards, supermarkets, storages or gas stations.



● Energy saving, 50% and more than conventional fluorescent tube.
● Solid lighting source, no UV, no infrared ray, no mercury.
● CRI>80; Initial luminous efficiency>90lm/w; lumens decay< 30% after 30,000h
● Constant current LED driver, no glare, start without any delay.
● 50000h long life span.
● Three kinks of cover to chose: Clear cover, Stripe rippled cover, Frosted milky cover.
